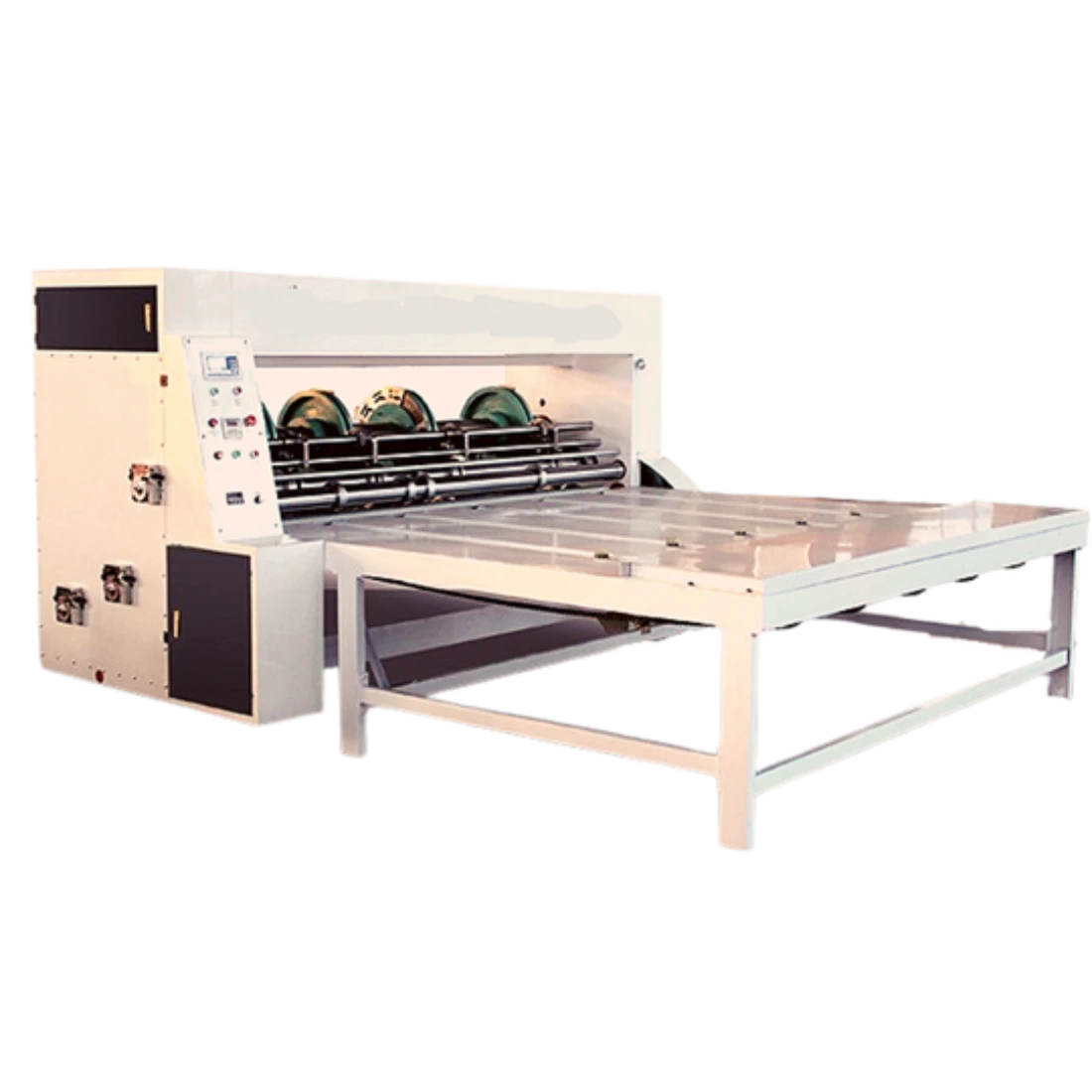

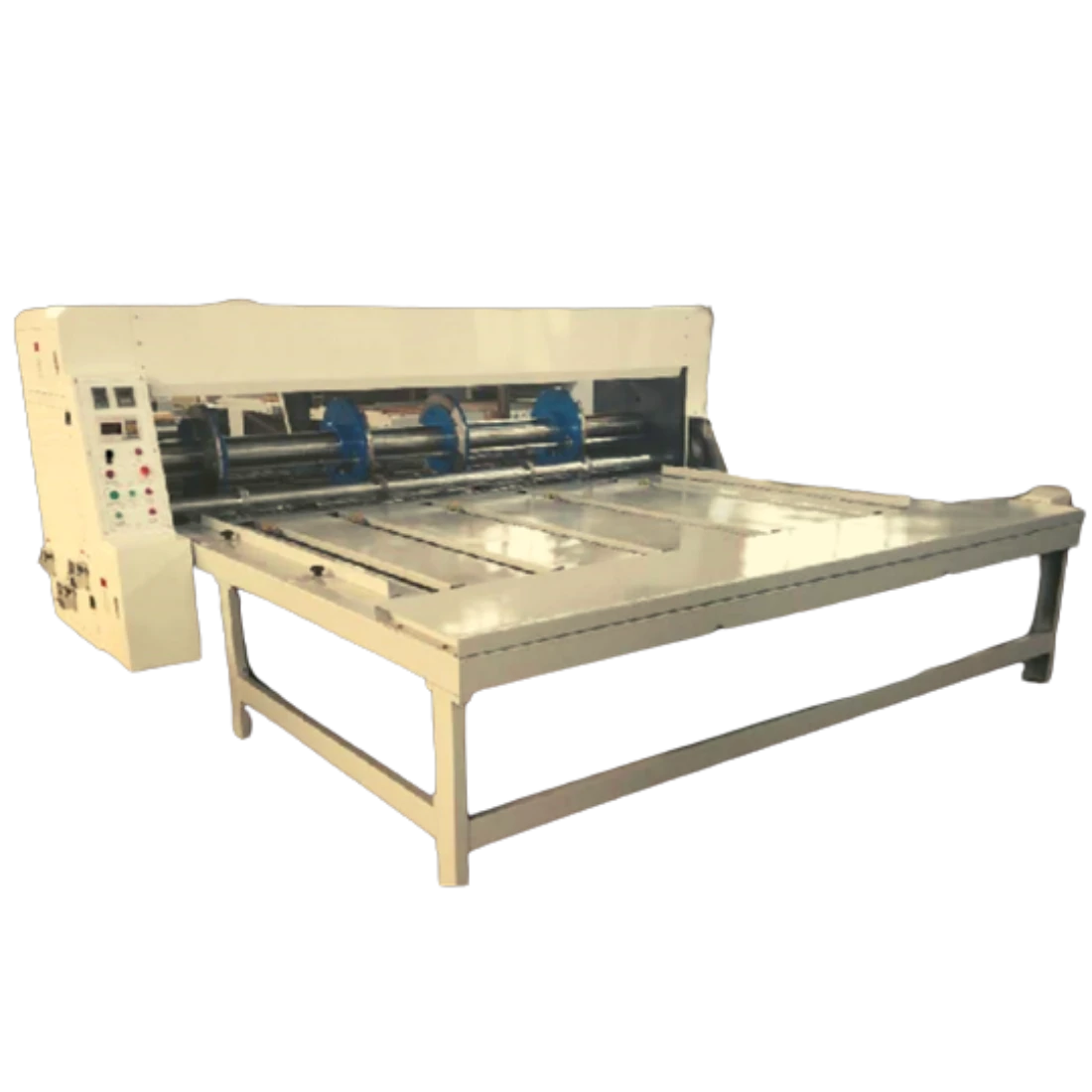

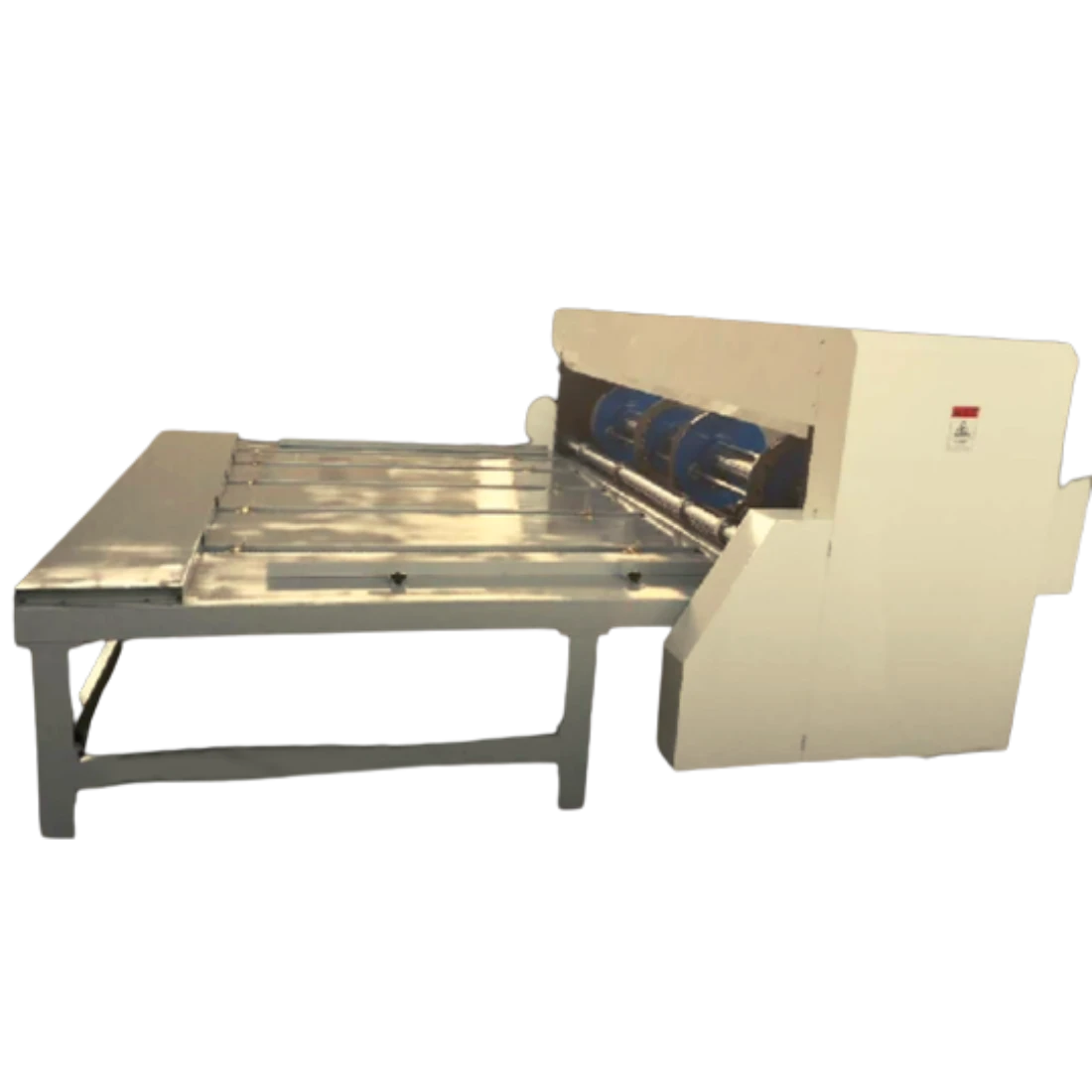

Combined Rotary Creaser Slotter Machine (Rs4)
With over 1,000+ happy customers this product been the trusted choice of corrugation manufacturers. This machine has become a basic requirement for any packaging house in the past decade.
This machine is basic requirement of corrugated box industry to slot/slit scoring after height creasing and slitting of board to make corrugated box
Our unique strengths for Combined Rotary Slotter Machine (Carton Box Making Machine):
- Over a decade of R&D to custom design and perfect the product for Indian subcontinent
- 1,000+ installations live in slotter family
- Highly trained and nuanced team of installation technicians
- 24*7 availability of complete range of spares and accessories (only such platform in India).
Main features
- Can be custom designed to customer’s factory requirement of additional width and dia. 1800 mm X 2200/1800X2400/1800X2600 MM feeding size also available with roll diameter 590mm
- Chain feeder
- Variable speed control
- Internal spray type
- Lubrication
- Digital slotting movement in axis 360 degree
| Model | 2200 x 1400 | 2400 x 1400 | 2600 x 1400 | 2800 x 1400 | 2600 x 1600 | 2800 x 1600 |
| Roller diameter (mm) | 468 | 468 | 468 | 468 | 530 | 530 |
| Max Feeding size (mm) | 1470 × 2200 | 1470 × 2400 | 1470 × 2600 | 1470 × 2800 | 1570 × 2600 | 1570 × 2800 |
| Electrical power (KWH) | 3.0 | 3.0 | 3.0 | 4.0 | 4.0 | 5.5 |
| Slotting width × depth (mm) | 7 | 7 | 7 | 7 | 7 | 7 |
| Transmission mode | Chain Type | Chain Type | Chain Type | Chain Type | Chain Type | Chain Type |
| Slot Accuracy (mm) | ±1.5 | ±1.5 | ±1.5 | ±1.5 | ±1.5 | ±1.5 |
| Work speed (sheets/min) | 0-60 | 0-60 | 0-60 | 0-60 | 0-60 | 0-60 |
