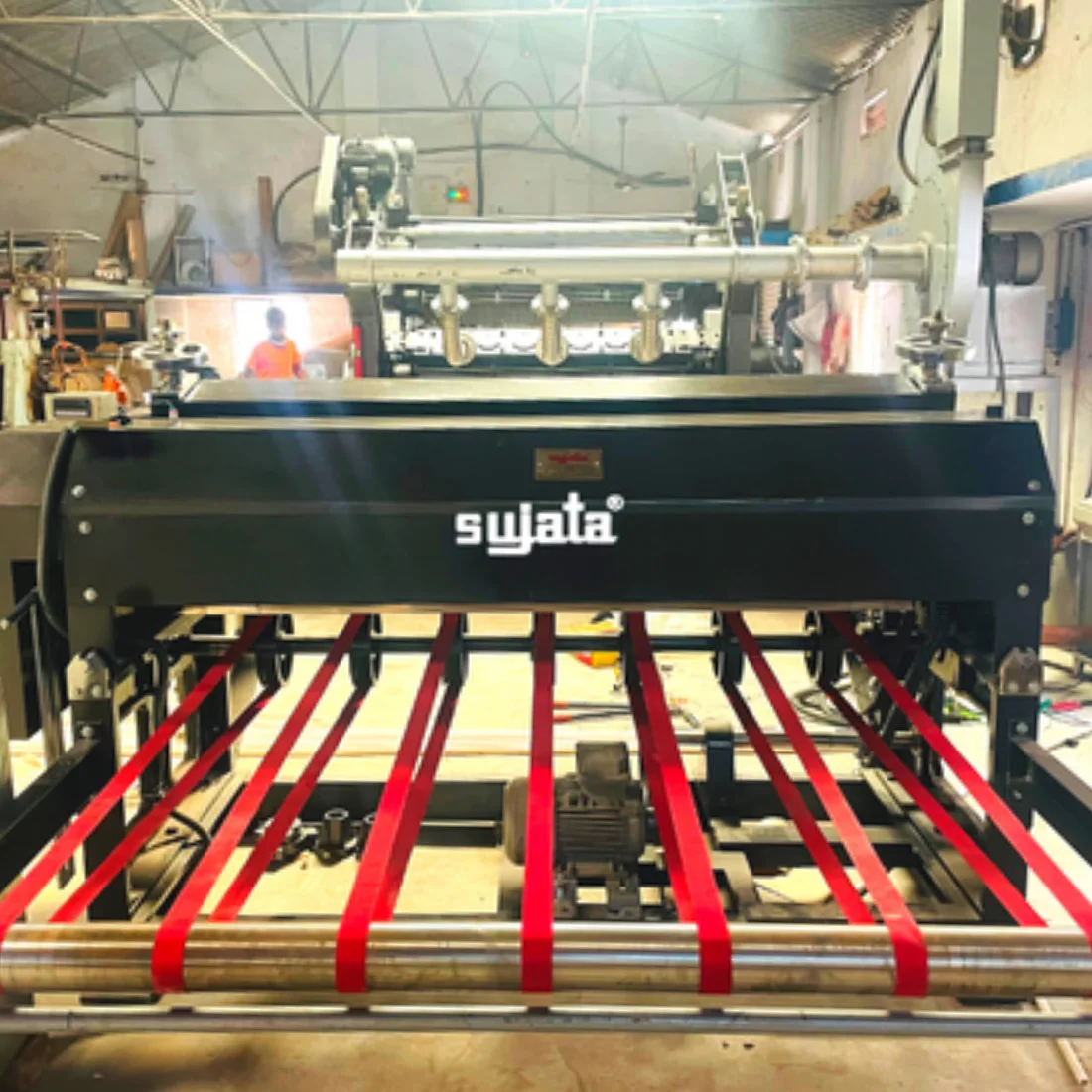

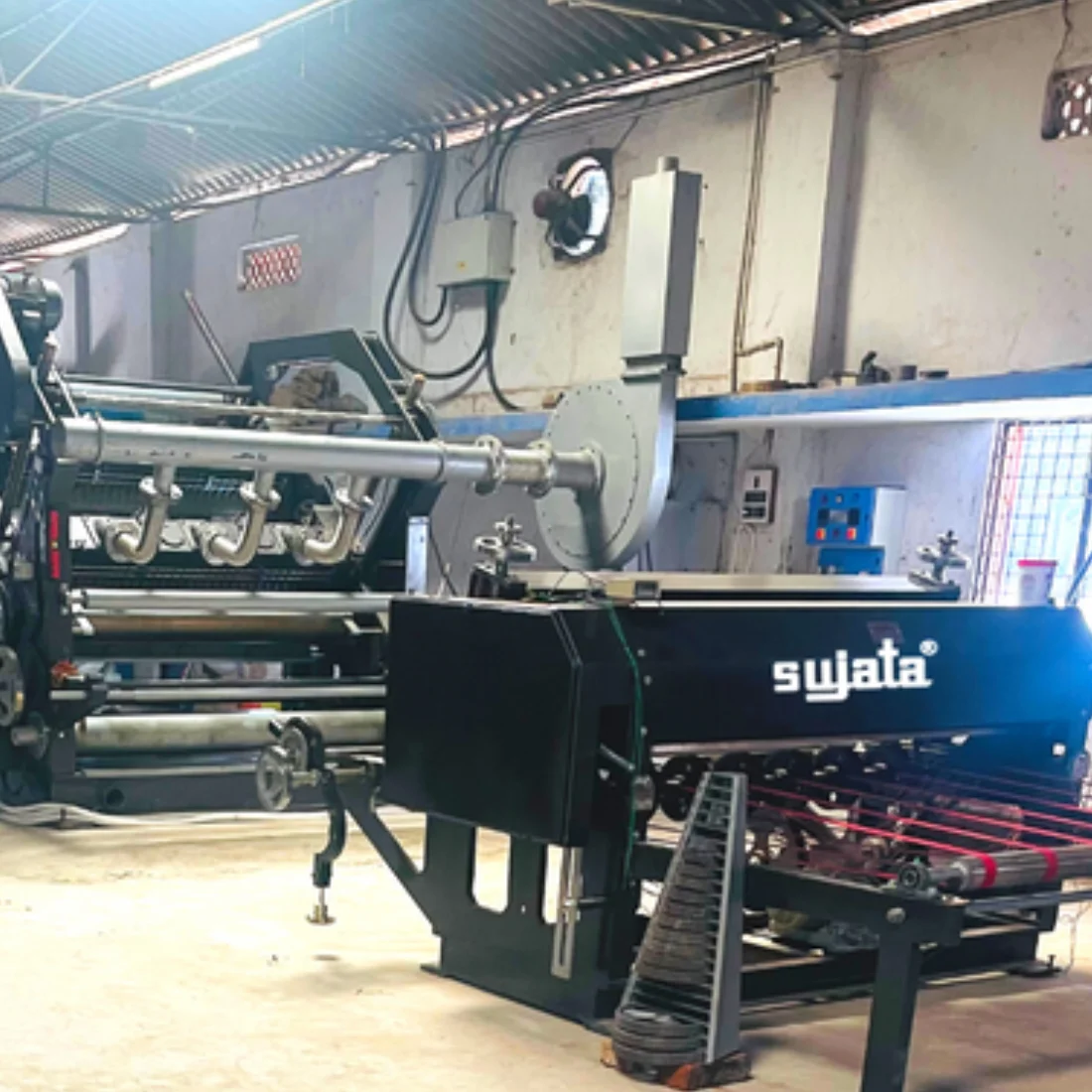

High Speed Reel to Sheet Cutter
(Gear Type)
Rotary Shear: Reel to Sheet Cutter (RSC)
Rotary sheet cutter is designed for high production sharp cutting of a ply corrugated board without damaging flutes as well as cut line paper. This cutter can be used as independent unit as well as a attached unit with a corrugation machine.
This machine is having size changing methods of gear changing mechanism by following sizing chart provided with the machine.
PRODUCT CODE FOR
GEAR MODEL: RSC
| Technical Data | |||
| Size | Motor H.P | Cutting Length | Output / Sheet Per Minute |
| 42″ | 2 | 20/100 | 20/60 |
| 52″ | 2 | 20/100 | 20/60 |
| 62″ | 2 | 20/100 | 20/60 |
| 68″ | 3 | 20/100 | 20/60 |
| 72″ | 3 | 20/100 | 20/60 |
